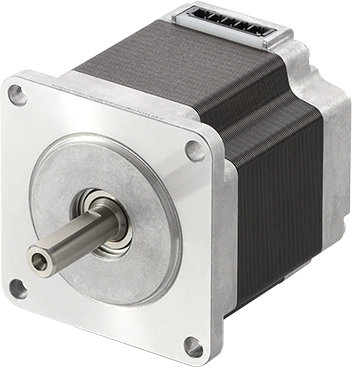

Flexible choice of 2-Phase and 5-Phase Stepping Motors.
Enhanced compatibility while utilizing both 2-Phase and 5-Phase characteristics.
Most suitable motor selection according to intended use.
Now offered at affordable prices.
| Model Name/Number | PKP Series | No Of Phase | 2 phase/5 phase |
| Step Angle | 0.72 Degree/ 1.8 Degree |
| Voltage | 24 V |
| Torque | 0.0231 ~ 6.3 |
| Motor Type | Unipolor, Bipolor |
The PKP Series stepper motors offer more variety of electrical Specifications, more frame sizes, encoder models and geared type motors for the optimum stepper motor solutions.
| No Of Phase | 2 |
| Step Angle | 1.8 Degree |
| Brand | Oriental Motor |
| Torque | 0.014 ~12 |
| Motor Type | Unipolor, Bipolor |
| Model Name/Number | PKP Series |
The PKP Series stepper motors offer more variety of electrical specifications, more frame sizes, encoder models and geared type motors for the optimum stepper motor solutions.

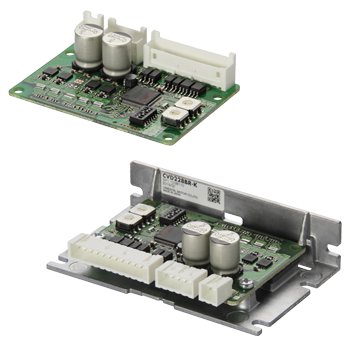

The CVD 2-phase stepper motors driver offers superior performance and value and is ideal for OEM or single axis machines. The CVD series stepper motor drivers offer:
1)Lowest Vibration and Noise with advanced Microstepping control
2)Pulse Input or RS-485 Communications Type
3)Significantly improves positional accuracy when microstepping
4)Highest torque with Bipolar configuration (4 lead wire)
5)Small, thin microstepping drive with space saving FETs
6)Selectable step angle and microstepping filter control
7)2 mounting types and connector configuration
8)Alarms
9)24 VDC Input / 0.5A to 4.5A
The CVD 5-phase stepper motor driver offers superior performance and value and is ideal for OEM or single axis machines. The CVD stepper motor drivers offer:
1)Lowest Vibration and Noise with advanced Microstepping control
2)Pulse Input, RS-485 Communications or Speed Control Type
3)Significantly improves positional accuracy when microstepping
4)Small, thin microstepping drive with space saving FETs
5)Selectable step angle and microstepping filter control
6)Alarms
7)24 VDC Input
Introducing the new 1.8° Standard and 0.9° High
Resolution PKP Series stepper motors with an
incremental Line Driver or Voltage output type encoder
pre-assembled.
●Motor position information detection is possible
Current position monitoring and position gap detection are possible
by using an encoder type motor. For example, normal motor
operation can be confirmed by comparing the current position and
the command position.
●Compact Encoder
Contributing to overall space savings, the PKP Series features a
standard size, compact encoder.
●To reduce electrical noise, use the Line Driver Output
type.
The Line Driver output offers excellent noise resistance because
of the differential output and is capable of longer wiring distance
compared to the voltage output.
●Main Specifications of Encoders
●Output Circuit Format: Line Driver Output or Voltage Output type
●Resolution: 200P/R (Standard Type), 400P/R (High-Resolution
Type)
●Output Signal: A-Phase, B-Phase, Z-Phase (3ch)
The high-torque PKP series 2-phase bipolar stepper motor provide high torque, low vibration and low noise.
Flat Connector type
Bipolar Winding
Motor and encoder cables required* (sold separately)
Lead Time1: Contact your local sales office for product lead-times, available to ship dates and shipping methods.
Motor Type: 2-Phase
Basic Step Angle: 1.8°
Frame Size: 1.65in
Motor Length: 1.3in
Holding Torque: 49 oz-in
Current per Phase (A/phase): 2.3
Voltage (VDC): 1.8
Resistance (Ω/phase): 0.78
Inductance (mH/phase): 1.4
Motor Connection Type: Flat Connector
Connection Type: Bipolar
Shaft/Gear Type: Round Shaft with Flat (No Gearhead)
Output Shaft Diameter; 5 mm
Shaft: Single
Encoder; Equipped
Electromagnetic Brake: Not Equipped
Lead Wires: 4
Encoder Type: Incremental
Encoder Resolution (P/R): 400
Output: 3-Channel A, B, Z
Input Current (mA): 30 mA max.
Input Voltage (V): 5 ±10%
Output Type: Line Driver
Output Voltage (Low); 0.5 V or less
Output Voltage (High): 2.5 V or more
Response Frequency (kHz): 100
| Brand | Oriental Motor |
| Power | 6~90 W |
| Output Power | 6~90 W |
| Speed | 90~1400 |
| Voltage | 220/230 VAC |
| Usage/Application | Industrial |
| Input Frequency | 50 - 60 Hz |
| Frame Size | 60~90 mm |
| No Of Phase | Single Phase |
| Frequency | 50/60 HZ |
| Model Name/Number | US2 Series |
| Output Speed | 90~1600 |
1)Advanced speed control motor.
2)Sophistication and high performance with greater usability. US2 Series, fully redesigened from the US Series, has been greatly advanced in all aspects.
High Performance without adjustment. Entry model of speed control motors, affordable and compact in size.
| Brand | Oriental Motor |
| Output Power | 6~90 W |
| Speed | 90~1600 |
| Voltage | 220/230 VAc |
| Usage/Application | Industrial |
| No Of Phase | Single Phase |
| Model Name/Number | DSC Series |
| Brand | Oriental Motor |
| Usage/Application | Industrial |
| Voltage | 24/48 VDC |
| Model Name/Number | DC input (AZ Series) |
| Torque | 0.02 ~ 10.5 |
| Motor Type | DC |
| Encoder Resolution | 1000 |
A mechanical driven sensor is used and requires no battery. The positional information is mechanically managed by the ABZO sensor. This retains the position information even if the power is turned off or the cable between the motor and the driver is removed.
| Brand | Oriental Motor |
| Motor Type | AR Series |
| Lost Motion | 2 arc minuteute |
| Permissible Torque | 12N m |
| Inertial Moment J | 150620x10^-7kg m^2 |
| Permissible Speed | 200r/min |
| Gear Ratio | 18 |
| Angular Transmission Error | 3 arc minute |
| Permissible Thrust Load | 2000N |
| Permissible Moment Load | 50N m |
| Runout of Output Table Surface | 0.015mm |
| Runout of Output Table Inner Outer Diameter | 0.015mm |
| Shaft Type | Double Shaft |
| Parallelism of Output Table | 0.030mm |
| Actuator Degree of Protection | IP20 |
| CE Marking | affixed |
| Speed and Positioning Control Command | Built-In Controller |
| Power Supply Input Frequency | 50/60Hz |
| Power Supply Input Current | 3.6A |
| Mass Actuator | 2.65kg |
| Mass Control Circuit | 0.75kg |
| Output Table Supporting Bearing | Cross-Roller Bearing |
| Frame Size | 130mm |
| Electromagnetic Brake | Without |
| Driver Type | Built-In Controller Type |
| Resolution | The resolution can be set from 1800 to 180000 P/R by using parameters. |
| Maximum Holding Force Power ON | 12Nm |
| Maximum Holding Force Power OFF | 0Nm |
The new DGII Series uses the highly efficient and energy saving αSTEP AR Series as the motor of the hollow rotary actuator.
1)High Efficiency and Energy Saving
2)High Function Driver Increases System Configuration Flexibility
3)Direct Coupling for Higher Reliability3
4)High Power, High Rigidity
5)High Positioning Accuracy with Non-Backlash
6)Large-Diameter, Hollow Output Table Makes Simple Wiring and Piping Possible
7)Supporting Sudden Load Fluctuation and Rapid Acceleration
Pulse Input
| Voltage | 24 V |
| Model Name/Number | BLV Series |
| Brand | Oriental Motor |
| Motor Type | Brushless Motor |
| Power | 200~400W |
| Commutation | Brushless |
1)The BLV Series is a DC input brushless motor and it consist a driver with output options of 200 W (1/4 HP) to 400 W (1/2 HP).
2)Communication control through I/O or RS-485 is availabe to support a wide variety of applications.
The compact and highly efficient brushless motor BLE2 Series with new lineup: orthogonal-axis hollow hypoid JH gear, legged gearhead JB gear, and parallel shaft gearhead JV gear with high permissible torque and hight strengh properties.
| Voltage | 24 V |
| Model Name/Number | BLE2 Series |
| Brand | Oriental Motor |
| Speed | 80~3600 |
| Power | 120, 200W |
| Commutation | Brushless |
| Phase | Single Phase |
| Brand | Oriental Motor |
| Model Name/Number | BMU Series |
| Speed | 80~4000 |
| Phase | Single Phase |
| Power | 30~400 |
| Commutation | Brushless |
The new brushless motor is a compact, high power, and high-efficiency motor.
