Authorised Distributor

Oriental Motor distributor in India

AB Automation is an authorised distributor of Oriental Motor in India, supplying stepper, closed loop, brushless, AC gear and speed-control motors, rotary actuators and OVR small robots — with selection support and on-site start-up.

Request a quote Oriental Motor

Oriental Motor is a Japanese manufacturer of small precision motors and motion control products. As an authorised Oriental Motor distributor based in Surat, Gujarat, AB Automation supplies genuine products across India — backed by engineers who select, wire, program and commission them every day.

For precise positioning, choose PKP stepper motors with CVD drivers, or the AZ Series closed loop stepper when you cannot afford missed steps. For adjustable speed, compare brushless DC motors with AC speed control motors and AC gear motors. For indexing, the DG hollow rotary actuator replaces cam indexers, and OVR small robots automate simple repetitive tasks.

Oriental Motor product range

Closed-Loop Motion

AZ Series Closed-Loop Stepper

Closed-loop stepping motor with a battery-free ABZO mechanical absolute sensor.

DC input (24/48 VDC) and AC input (100–120 / 200–240 VAC) types
Standard motors up to 4 N·m; geared types up to 110 N·m
Absolute position retained with power off (battery-free ABZO sensor)
Pulse, RS-485 (Modbus), EtherCAT and other network drivers
No gain tuning, no hunting at standstill
Geared, brake and electromagnetic-brake variants

View AZ Series Closed-Loop Stepper

Stepper Motors

PKP Series Stepper Motors

High-torque, low-vibration 2-phase stepper motors with encoder and geared options.

2-phase, 1.8° step angle (0.9° high-resolution)
Unipolar / bipolar winding, 24 V
Encoder types: 200, 400, 500 and 1000 P/R standard, line-driver or voltage output
Geared (spur, planetary, Harmonic), brake and flat variants
Frame sizes from 13 mm to 85 mm (up to NEMA 34); 5-phase types also available

View PKP Series Stepper Motors

Stepper Drivers

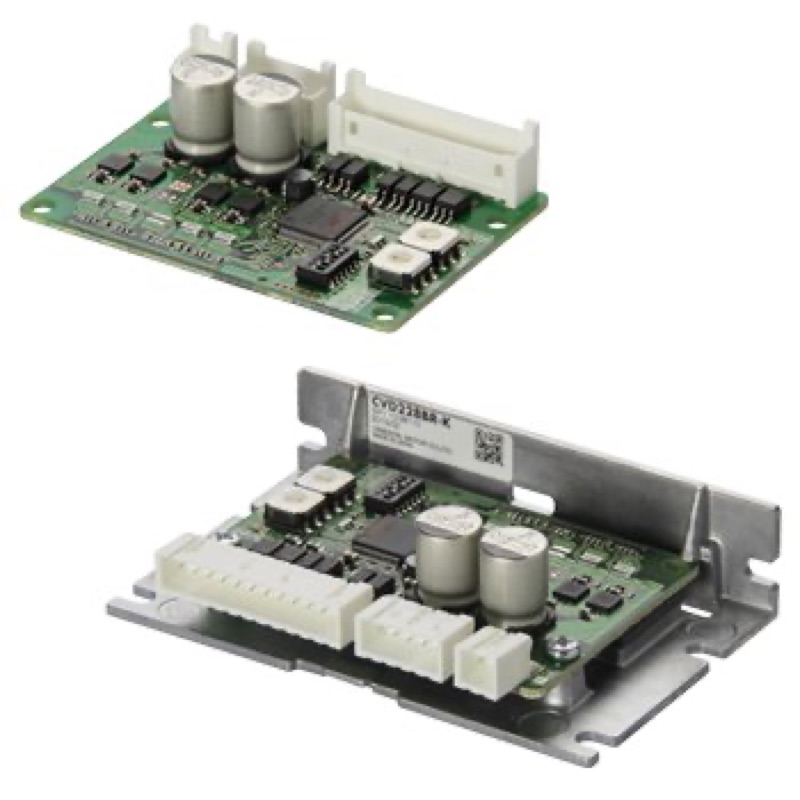

CVD / CVK Stepper Drivers & Packages

2-phase and 5-phase microstepping drivers and motor packages — low vibration, affordable, ideal for OEM machines.

2-phase and 5-phase types
Pulse-input or RS-485 communication types
24 VDC input, 0.5 A – 4.5 A
Selectable step angle & microstepping filter
Alarm outputs, space-saving design

View CVD / CVK Stepper Drivers & Packages

Brushless Motors

BLV / BLE2 / BMU Brushless Motors

Compact, high-efficiency brushless motor and driver packages, 30 – 400 W.

BMU: 30 – 400 W, speed 80 – 4000 r/min, easy panel setting
BLE2: 30 – 400 W with digital setting and parallel-shaft / right-angle gearheads
BLV R Type: 24/48 VDC input, 60 – 400 W for AGVs and mobile machines
I/O control; Modbus RTU / CANopen on DC-input types
Higher efficiency and smaller size than AC motors

View BLV / BLE2 / BMU Brushless Motors

Speed Control

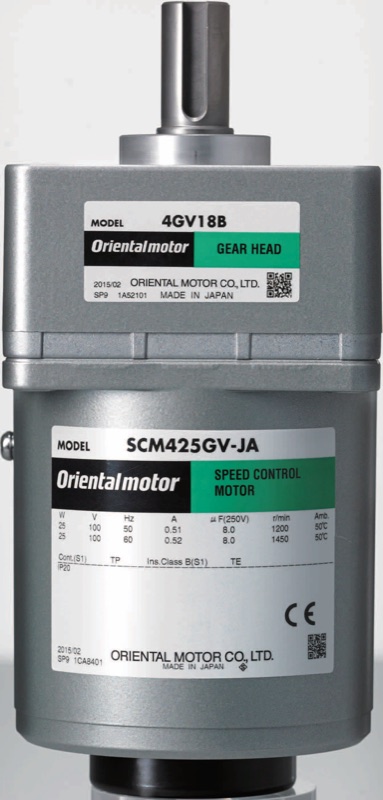

US2 / DSC Speed Control Motors

Speed control motor & controller packages from 6 to 90 W — affordable, compact and high performance.

Single phase 220/230 VAC, 50/60 Hz
Output 6 – 90 W, frame sizes 60 – 90 mm
Speed range 90 – 1400 r/min (50 Hz)
US2: simple dial setting; DSC: external speed signal & presets
Matching parallel-shaft gearheads

View US2 / DSC Speed Control Motors

AC Motors

AC Induction, Reversible & Gear Motors

Compact single-phase and three-phase AC motors with matching gearheads for constant-speed duty.

Induction, reversible and electromagnetic-brake motor types
Single-phase and three-phase types
Parallel-shaft and right-angle hollow-shaft gearheads
Compact frame sizes for machine building
Can be upgraded to speed control or brushless packages

View AC Induction, Reversible & Gear Motors

Actuators

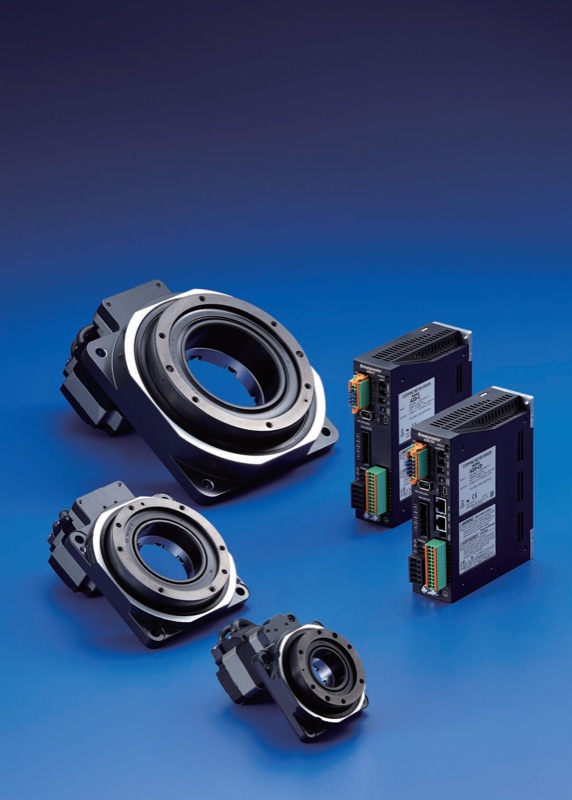

DG Series Hollow Rotary Actuators

Hollow rotary actuator with a built-in battery-free absolute sensor, non-backlash gearing and cross-roller bearing.

High rigidity, non-backlash positioning
Large-diameter hollow table simplifies wiring/piping
Direct load mounting on cross-roller bearing
Battery-free absolute sensor (AZ Series based)
Built-in controller type available

View DG Series Hollow Rotary Actuators

Robots

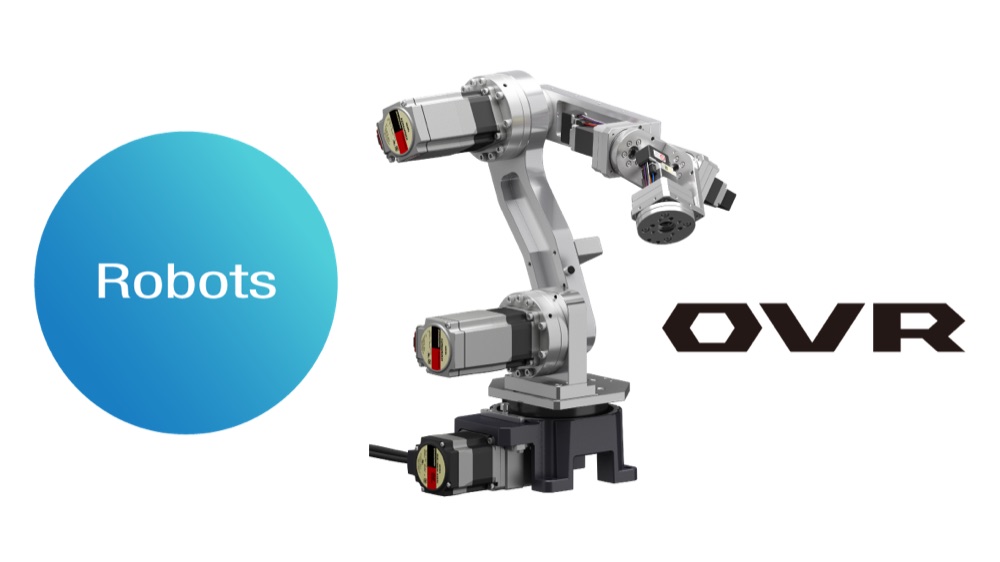

OVR Series Small Robots

Compact articulated, SCARA and Cartesian robots built on AZ Series motors — programmed with simple drag-and-drop software.

Articulated (4/5/6-axis), SCARA and Cartesian types
Payload 1 – 5 kg, reach 350 – 880 mm (model dependent)
Repeatability ±0.02 – ±0.08 mm
AZ Series motors with battery-free ABZO absolute sensors on every axis
MRC01 controller with free MRC Studio drag-and-drop programming and 3D simulator
24 VDC operation, EtherNet/IP and I/O connection to PLCs

View OVR Series Small Robots

Controllers

Controllers & Network Drivers

Multi-axis controllers and network-compatible drivers for stepper and servo systems.

Multi-axis positioning
EtherCAT, RS-485 (Modbus RTU) and fieldbus / Ethernet connectivity
Network converters for multi-axis systems
Free setup and monitoring software

View Controllers & Network Drivers

Specifications are indicative. Contact us for the exact model, availability, lead time and pricing.

Can’t find your model?

We supply the complete Oriental Motor catalogue

Send us the model number or your application details — we’ll confirm stock and give you a fast quote, with pan-India delivery.

Oriental Motor FAQs

Is AB Automation an authorised Oriental Motor distributor?

Yes. AB Automation Private Limited, Surat, is an authorised distributor of Oriental Motor in India, supplying genuine products with warranty backing and factory-trained technical support.

Which Oriental Motor products do you supply?

The complete Oriental Motor catalogue — PKP stepper motors, CVD drivers, AZ Series closed loop steppers, BLE2/BMU/BLV brushless DC motors, US2/DSC speed control motors, AC induction and gear motors, DG Series hollow rotary actuators, controllers and OVR small robots.

Do you deliver Oriental Motor products across India?

Yes. We are based in Surat, Gujarat and supply pan-India. Send us the model number or your application for availability, lead time and a quote.

Can you help me select the right Oriental Motor product?

Yes. Our engineers do selection calculations from your load, speed and positioning requirements, and support wiring, parameter setup and on-site start-up.

Can you find a replacement for an old Oriental Motor model?

Yes. Share the nameplate or model number of the existing motor or driver and we will confirm the current equivalent model.
